DM 300 (MAX 3200W) Charger
IP 65
| ltem | Parameter |
| Rated power | MAX 3200W |
| Input | AC 100~240V 50/60Hz |
| Output | DC 48V60A / 60V45A/ 72V40A / 96V30A |
| Protocol | CAN / MCU CC + CP |
| Cooling Method | Fan/ IP65 |
| Protection | OVP/UVP /OCP/ SCP/ OTP |
| Efficiency | ≥91% |
| Safety | CE |
| Application | NMC / LFP |
| Size | 274*214*124.7mm |
|

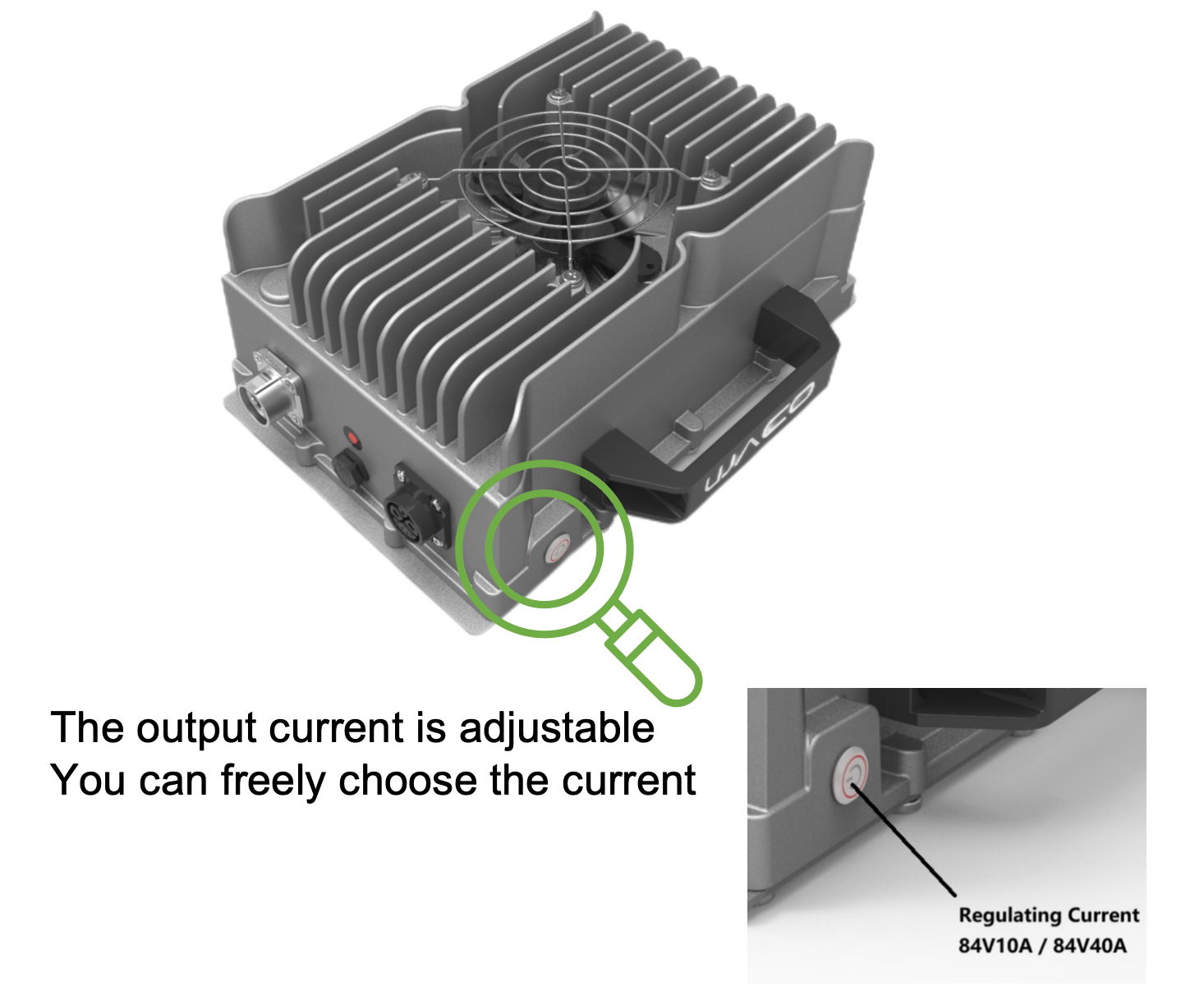

Product features: Small size, fully potted PCB, IP65 waterproof, very cost-effective, aluminum alloy with good heat dissipation, impact resistance, fast charging, supports full voltage, passed CE and BIS The output current is adjustable. PLUS style：Supports output current switching adjustment, specially designed for home low-power slow charging and specific fast charging. |
|
