OBC 301 (MAX 3300W) Charger
IP 65
| ltem | Parameter |
| Rated power | MAX 3300W |
| Input | AC 100~240V 50/60Hz |
| Output | DC 48V60A / 60V45A/ 72V40A / 96V30A |
| Protocol | CAN / MCU CC + CP |
| Cooling Method | Fan/ IP65 |
| Protection | OVP/UVP /OCP/ SCP/ OTP |
| Efficiency | ≥91% |
| Safety | CE |
| Application | NMC / LFP |
| Size | 274*214*124.7mm |
| APP Application | Yes |
|

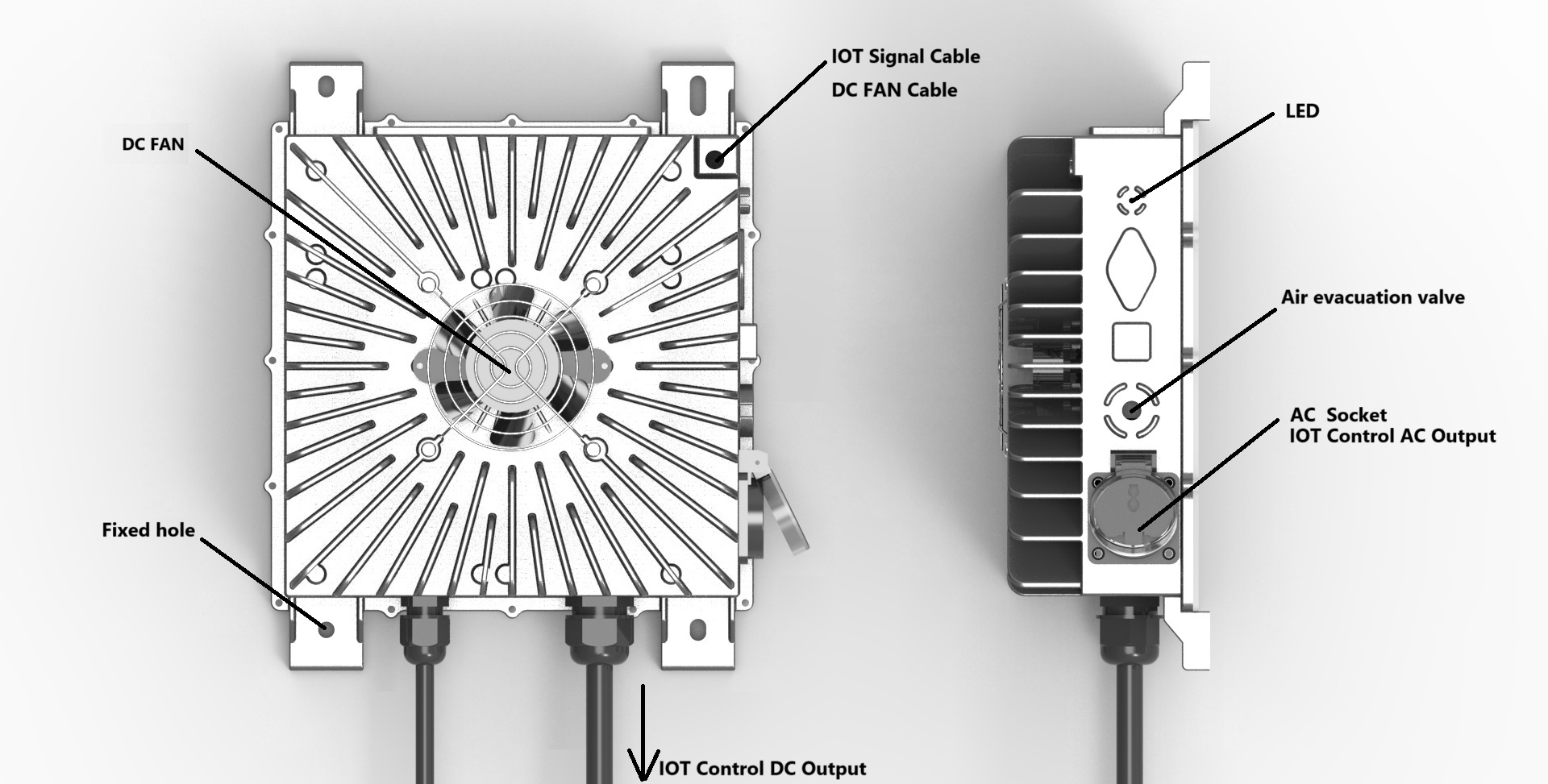

Product features: Small size, fully potted PCB, IP65 waterproof, very cost-effective, aluminum alloy with good heat dissipation, impact resistance, fast charging, supports full voltage, passed CE and BIS Support OBC charging, support CC/CP charging piles Plus Model：Supports output current switching adjustment, specially designed for home low-power slow charging and specific fast charging. Support IOT APP remote control. |
|
