OBC 120 (MAX 1200W)
IP 67
| ltem | Parameter |
| Rated power | MAX 1200W |
| Input | 100~240V 50/60Hz |
| Output | DC 48V25A/60V20A/72V16A / 96V13A |
| Protocol |
MCU/ CAN / CC+CP |
| Cooling Method | Fan/ lP67 |

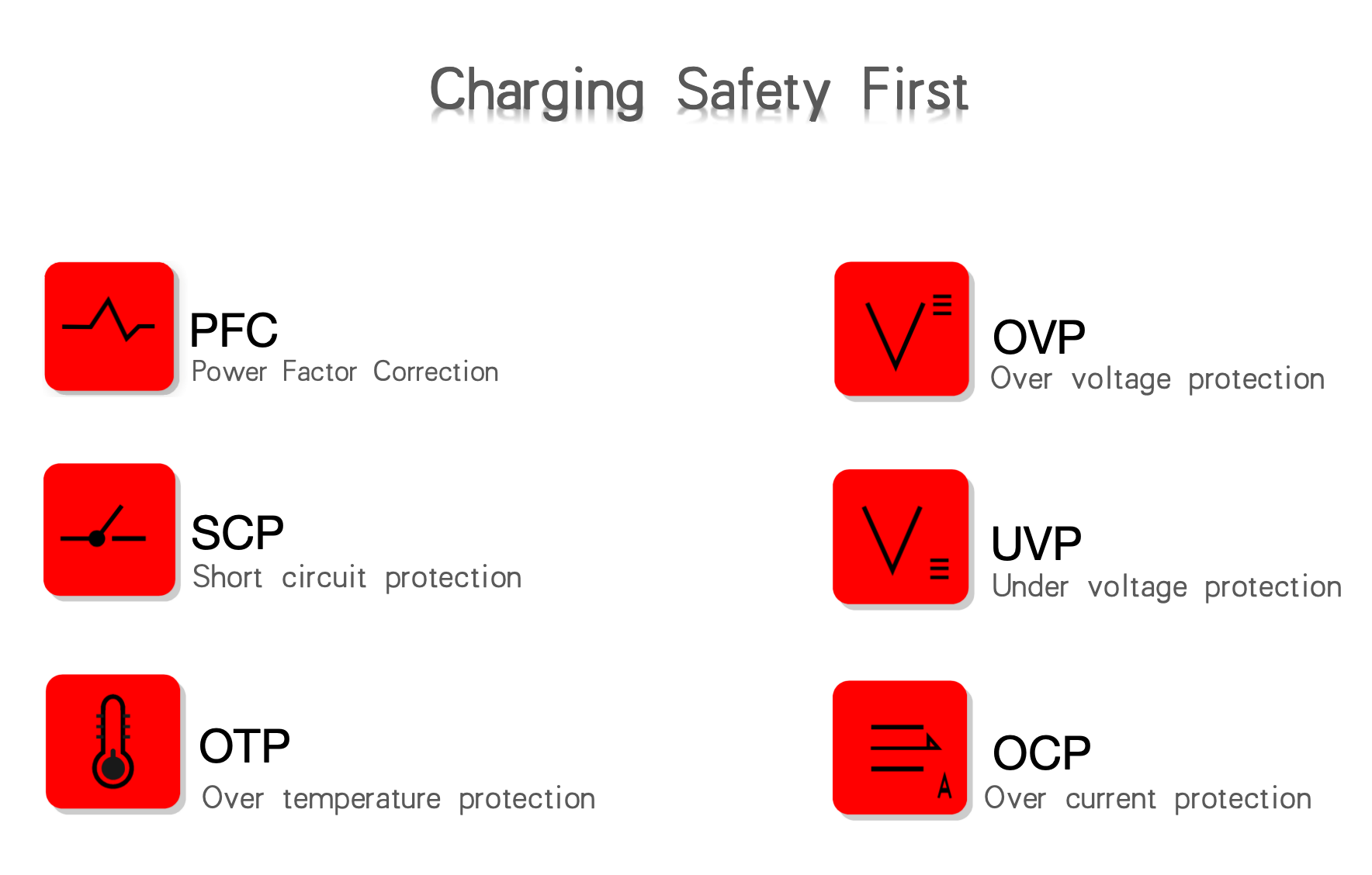

| Protection | OVP/UVP /OCP/ SCP/ OTP |
| Efficiency | ≥90% |
| Safety | CEļ¼BIS, FCC |
| Application | Lithium electricity |
| Size | 215*116*101mm |
|
Product features: Small size, fully potted PCB, IP67 waterproof, very cost-effective, aluminum alloy with good heat dissipation, impact resistance, fast charging, supports full voltage, passed CE and BIS |
|
